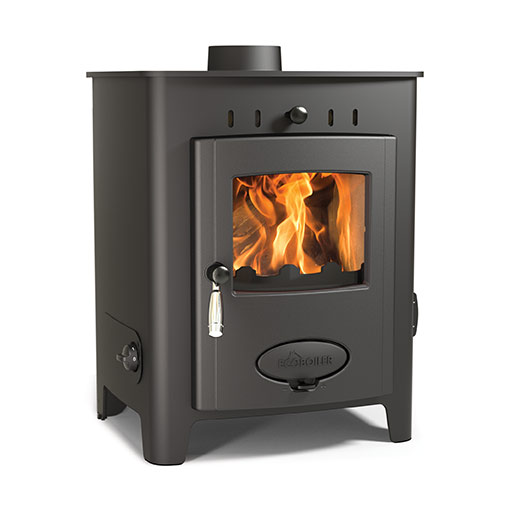

Arada Ecoboiler 9HE - Series 5

THIS STOVE IS NO LONGER MANUFACTURED

Online documentation is available at:
https://www.aradastoves.com/docs/stoves/eb9he-g5/

Providing more than just superior performance, the Ecoboiler HE (high efficiency) has a large fire door glass and soft curved lines, offering an attractive focal point for any living area. Regardless of whether you burn wood or solid fuel, these boiler stoves have the technology to keep your home warm and cosy. On top of its stylish appearance, discreet thermostatic control and three bar operating pressure, its ability to produce 50% more heat to water than other boiler stoves ensures the Ecoboiler is the ultimate heating companion.

Output to water 9kW
Log length 280mm
Width 466mm
Height 570mm
Depth 417mm

7 year guarantee
Easily accessible water sensor for trouble-free maintenance
Preheated airwash system for clean glass
Stainless steel ash pan and baffle
Burns wood or solid fuel
Compact space-saving design
Discreetly positioned thermostatic control fitted as standard
‘Easy Boost’ system
Large, externally controlled riddling grate
Flue Exhaust Diversion system to improve performance
Primary and secondary burn to improve efficiency
Suitable for installation in an indirect/ open-vented central heating system
Up to 3 bar operating pressure
Top or rear flue outlet
Direct air supply compatible
Height adjusting legs as standard

View the Exploded Diagram

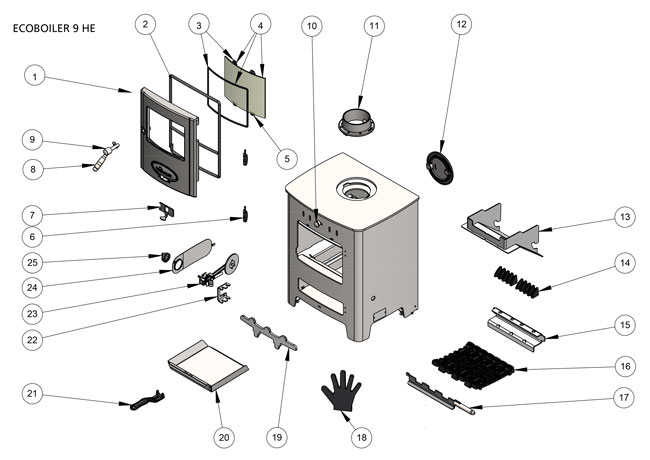

Exploded Diagram for Arada Ecoboiler 9HE - Series 5

Exploded Diagram of Arada Ecoboiler 9HE - Series 5

All Spares for Arada Ecoboiler 9HE - Series 5

Ref

Description

Part Code

Price

Qty in Stove

Stock

Qty

Buy Now

Complete Fire Door

Part Code

AFS3490

Price (inc VAT)

£315.76

Qty in Stove

(3 available)

Arada Rope Kit 3

Part Code

ARA019

Price (inc VAT)

£35.42

Qty in Stove

(17 available)

Gasket And Glass Clips

Part Code

AFS1361

Price (inc VAT)

£17.11

Qty in Stove

(66 available)

Glass Kit

Part Code

AFS1453

Price (inc VAT)

£103.85

Qty in Stove

(30 available)

Glass Clips

Part Code

AFS1010

Price (inc VAT)

£7.15

Qty in Stove

(113 available)

Hinge (right Hand)

Part Code

AFS2775

Price (inc VAT)

£19.45

Qty in Stove

(111 available)

Primary Air Controls

Part Code

AFS1369

Price (inc VAT)

£31.75

Qty in Stove

(4 available)

Handle (stainless Steel)

Part Code

AFS3580

Price (inc VAT)

£18.83

Qty in Stove

(11 available)

Handle Assembly (stainless Steel Handle)

Part Code

AFS3585

Qty in Stove

(Please call our sales team for details)

Airwash Knob

Part Code

AFS1405

Price (inc VAT)

£8.33

Qty in Stove

(51 available)

4 Inch Flue Spigot

Part Code

AFS009A

Price (inc VAT)

£46.04

Qty in Stove

(78 available)

4 Inch Hot Plate

Part Code

AFS009B

Price (inc VAT)

£42.77

Qty in Stove

(26 available)

Feds Lower Plate

Part Code

AFS1541

Price (inc VAT)

£52.38

Qty in Stove

(14 available)

Fire Bed Surround

Part Code

AFS1380

Price (inc VAT)

£13.82

Qty in Stove

(292 available)

Grate Bar Support

Part Code

AFS1539

Price (inc VAT)

£30.06

Qty in Stove

(6 available)

Grate Bar

Part Code

AFS001

Price (inc VAT)

£15.37

Qty in Stove

(729 available)

Comb With Extension

Part Code

AFS1324

Price (inc VAT)

£31.54

Qty in Stove

(7 available)

Arada Hot Glove

Part Code

ARA010

Price (inc VAT)

£10.68

Qty in Stove

(270 available)

Fuel Retainer

Part Code

AFS1865

Price (inc VAT)

£24.50

Qty in Stove

(18 available)

Ash Pan

Part Code

AFS058

Price (inc VAT)

£20.86

Qty in Stove

(12 available)

Operating Tool

Part Code

AFS008

Price (inc VAT)

£15.30

Qty in Stove

(136 available)

Thermostat Mounting Bracket

Part Code

AFS1570

Price (inc VAT)

£12.32

Qty in Stove

(25 available)

Thermostat

Part Code

AFS1564

Price (inc VAT)

£124.67

Qty in Stove

(8 available)

Thermostat Access Panel

Part Code

AFS1321

Price (inc VAT)

£20.84

Qty in Stove

(1 available)

Thermostat Knob

Part Code

AFS1379

Price (inc VAT)

£12.02

Qty in Stove

(16 available)

Roller Catch Components

Part Code

AFS4567

Price (inc VAT)

£13.69

Qty in Stove

(21 available)
